Bơm chìm hố móng công trình KT series

Mã sản phẩm : 1495554741

Số lượng:

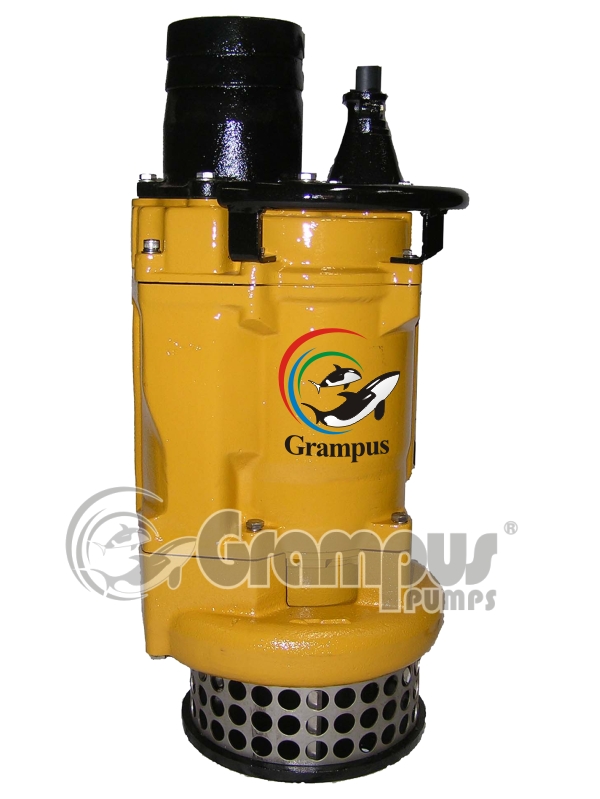

    KT The project uses dirty water pump

    KT The project uses dirty water pump

    KT-water-pump

    APPLICATION

    1.The special construction of the bridge,he harbor, the river and the civil engineering drain off water using.

    2.The sand graduated field of the cement depot and the kiln industry sewage removes.
    3.The sedimentation pool, organic sewage and dirt mud discharges.
    4.The water of underground, subway,building foundation and underground spring discharges.
    5.The water accumulation of civil engineering, spring water, sewage, the basement and the concave land discharge.


    MATERIAL AND STANDARD TABLE

    Caliber 50mm.80mm.100mm.150mm

    Liquid

    Temperature 0℃~40 ℃ (32℉~104℉)
    Application
    The special construction,the bridge, the harbor,the river,the civil engineering drain off water using

    The lowest depth

    ▽30 M
    Pump
    Structure
    Impeller
    Semi-open Impeller
    Seal

    Dual Mechanical Seal

    Material
    Upper Cover
    FC-250
    Bearing Heavy-duty bearing
    Impeller
    HiCrFC
    Volute Casing
    FCD-500
    Seal Bracket
    HiCrFC
    Seal
    Lubricat
    ISO VG.# 32
    Motor Side
    Carbon / Ceramic
    Pump Side
    Silicon Carbon / Silicon Carbon
    Motor
    Type
    Submersible dry type
    Insulation class
    F class (155°C)
    Frquency 50 Hz / 60 Hz
    Pole / Rotation (rpm) 2P / 2850 / 3450 (rpm)
    Phase/Volts
    3 p/220V / 380V
    Inner protector
    Auto Reset Motor Protector
    Material
    Casing
    FC-200
    Main shaft
    SUS-420
    Cable
    VCT



    PERFORMANCE CURVEGRAMPUSPUMP-CurveSTRUCTURAL DRAWING







    GRAMPUSPUMP-KT-Profile

    GRAMPUSPUMP-SPECIFICATION
